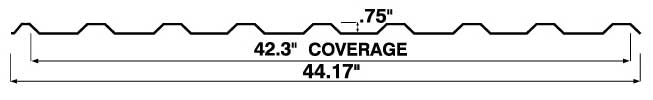

WIDTH: 44.17"
COVERAGE WIDTH: 42.3”
LENGTH: 13.75

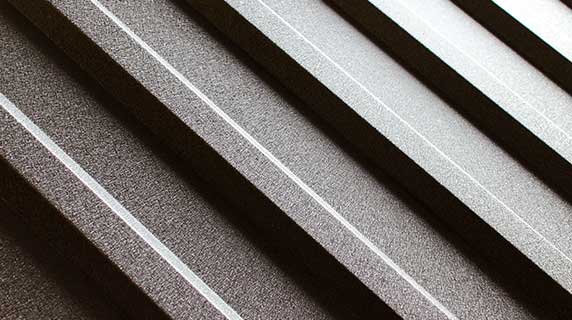

T18 (Rib Panel) may be used for new construction or re-roofing. Minimum pitch recommended is 3:12. T18 (Rib Panel) may be applied directly over the old roofing material, without the need for tear-off and disposal.
Standards Offerings: Panels are roll-formed from .019 nom gauge, Z275 (G90) - galvanized steel, Grade FS-B or PFQ DS.
Eco-Tile panels are in the form of an “S” or Spanish style tile. Panels are 47-5/8” wide nominal, including a 2-3/8” side lap. The length of one tile “module” is 13-3/4” and the width of the “scallop” is a 9“ repeat. The “step” on the tile is 1-1/8”. Panel lengths are cut to customer specification and can range from 20” minimum to any transportable length. Panels are also cut as per one “module” length and sold separately with 10 pieces per box.
A choice of 14 colors is available in a “BeckryTech” (Granite Deep Mat) finish. T18 (Rib Panel) specified with matte finish. Weight: 0.96 lb./sq. ft.
BeckryTech or Granite Deep Mat based finishes tests by paint Supplier for: Dry Film Thickness: ASTM D 5796, Standard Test Method for Measurement of Dry-Film Thickness of Organic Coatings D1005 - 95(2007) Standard Practices for Measurement of Dry Film Thickness of Protective Coating Systems by Destructive D4138 -07a Standard Practice for Visual Appraisal ASTM D1729-96 Specular Glass: ASTM D 523 Pencil Hardness: ASTM D 3363 Solvent Resistance: ASTM D5402-06 Cross-Hatch Adhesion: ASTM D3359 Impact Resistance: ASTM D 2794 T-Bend Flexibility: ASTM D 4145 Humidity Resistance: ASTM D 2247 Standard Practice for Testing Water Resistance of Coatings ASTM D 4585-07 Salt Spray: ASTM B 117 Color Retention: ASTM D 2244 Chalking Resistance: ASTM D 4214 Abrasion Resistance: ASTM D 968 Flame Spread Rating; ASTM E 84 Fire Resistance: UL 790/ASTM E 108 external fire performance - Class A Fire Rating Impact Resistance: UL2218 Grade 4 (2” x 20’) Steel: ASTM A 792 Coil Coating: ASTM A755 / A755M - 11
T18 (Rib Panel) panels are installed vertically up the slope of the roof. The panel Is installed with metal fasteners long enough to penetrate the solid substrate. Installation manuals or hands-on training via seminars are available through London Eco-Metal Manufacturing Inc.
T18 (Rib Panel) panels are available through London Eco-Metal Manufacturing Inc. A complete line of related components and trim accessories is available to complete the roof system. Flat sheet and/or coil stock in matching color is also available for fabrication of related accessories by the installing contractor.
Contact London Eco-Metal Manufacturing Inc. for current pricing.
T18 (Rib Panel) carry a fifty (50) year limited warranty Canada and Continental U.S.
T18 (Rib Panel) panels are virtually maintenance free. Surface residue may be easily removed by conventional cleaning methods. Minor scratches may be touched up with a matching paint, available from the manufacturer.
Technical information and literature are from London Eco-Metal Manufacturing Inc.
Additional product information is available from the manufacturer upon request. Toll Free: 1-855-838-9393.
