WIDTH: 46.875"
COVERAGE WIDTH: 44”
LENGTH: 13.75
Bingo 350 is a metal tile facsimile panel to be used for roofing on both residential and commercial buildings. Bingo 350 may be used for new construction or reroofing. Minimum pitch recommended is 3:12. Bingo 350 may be applied directly over the old roofing material, without the need for tear-off and disposal.
Standards Offerings: Panels are roll-formed from .019 nom gauge, Z275 (G90) - galvanized steel, Grade FS-B or PFQ DS.

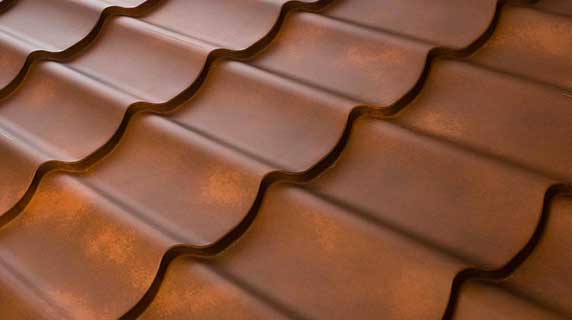

Bingo 350 panels are in the form of an “S” or Spanish style tile. Panels are 46.85” wide nominal, including a 2.5” side lap. The length of the “tile” is 13 ¾ and the width of the “scallop” is a 7.32 “repeat. The “step” on the tile is .90” (23 mm). Panels lengths are cut to customer specification and can range from 20” minimum to any transportable length.
A choice of 14 colors is available in a “BeckryTech” (Granite Deep Mat) finish. Bingo 350 specified with matte finish. Weight: 0.96 lb./sq. ft.
BeckryTech or Granite Deep Mat based finishes tests by paint Supplier for: Dry Film Thickness: ASTM D 5796, Standard Test Method for Measurement of Dry- Film Thickness of Organic Coatings D1005 - 95(2007) Standard Practices for Measurement of Dry Film Thickness of Protective Coating Systems by Destructive D4138 -07a Standard Practice for Visual Appraisal ASTMD1729-96 Specular Glass: ASTM D 523 Pencil Hardness: ASTM D 3363 Solvent Resistance: ASTM D5402-06 Cross-Hatch Adhesion: ASTM D3359 Impact Resistance: ASTM D 2794 T-Bend Flexibility: ASTM D 4145 Humidity Resistance: ASTM D 2247 Standard Practice for Testing Water Resistance of Coatings ASTM D 4585-07 Salt Spray: ASTM B 117 Color Retention: ASTM D 2244 Chalking Resistance: ASTM D 4214 Abrasion Resistance: ASTM D 968 Flame Spread Rating; ASTM E 84 Fire Resistance: UL 790/ASTM E 108 external fire performance - Class A Fire Rating Impact Resistance: UL2218 Grade 4 (2” x 20’) Steel: ASTM A 792 Coil Coating: ASTM A755 / A755M - 11
Bingo 350 panels are installed vertically up the slope of the roof. The panel Is installed with metal fasteners long enough to penetrate the solid substrate Roof membrane 135g is recommended Installation manuals or hands-on training via seminars are available through London Eco-Metal Manufacturing Inc.
Bingo 350 panels are available through London Eco-Metal Manufacturing Inc. A complete line of related components and trim accessories is available to complete the roof system. Flat sheet and/or coil stock in matching color is also available for fabrication
of related accessories by the installing contractor.
Contact London Eco-Metal Manufacturing Inc. for current pricing.
Bingo 350 carry a fifty (50) year limited warranty Canada and Continental U.S.
Bingo 350 panels are virtually maintenance free. Surface residue may be easily removed by conventional cleaning methods. Minor scratches may be touched up with a matching paint, available from the manufacturer.
Technical information and literature are available from London Eco-Metal Manufacturing Inc.
Additional product information is available from the manufacturer upon request. Toll Free: 1-855-838-9393.
